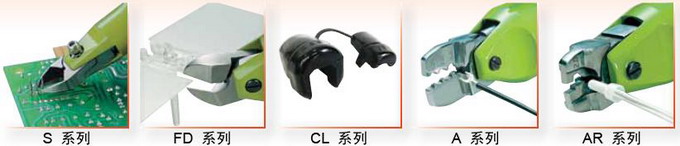

| S系列-鋼絲剪鉗頭 |
| 件號 |
裁剪能力 |
適用氣剪型號 |
A |
B |
C |
| 銅絲 |
鐵絲 |
mm |
mm |
mm |
| B-S10 |
0.8 |
0.5 |
ST-66710 |
11 |
6.9 |
2.9 |
| B-S20 |
1.1 |
0.5 |
ST-6672 |
11 |
6.9 |
1.8 |
| B-S30 |
1.6 |
1.0 |
ST-6673 |
13.5 |
9.6 |
6 |
| B-S40 |
2.6 |
2.2 |
ST-66711 - ST-66716 |
19 |
11.8 |
7.5 |
| 3.0 |
2.4 |
ST-66712 |
| B-S50 |
3.3 |
2.8 |
ST-66714-ST66717 |
24 |
17 |
8.5 |
| 不銹鋼: 2.0 |
| 琴弦鋼絲: 1.2 |
| 4.8 |
4 |
ST-66715 |
| 不銹鋼: 2.8 |

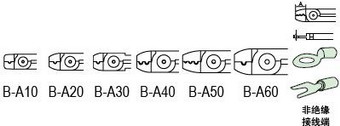

| A系列-非絕緣接線端,彎曲剪鉗頭 |
| 件號 |
裁剪能力 |
適用氣剪型號 |
A |
B |
| mm |
mm |
| B-A10 |
1.25sq |
ST-66711 - ST-66712
ST-66716 |
11 |
5.7 |
| B-A30-1 |
1.25sq |
ST-66713 |
11.5 |
6.5 |
| B-A20-1 |
1.25sq |
ST-66714-ST66715
ST-66717 |
11.5 |
6.5 |
| B-A20-2 |
2.0sq |
| B-A20-3 |
5.5sq |
| B-A40-1 |
1.25-2.0sq |
20 |
6 |
| B-A40-2 |
2.0-5.5sq |
20 |
6 |
| B-A50 |
1.25-2.0-5.5sq |
28 |
6 |
| B-A60 |
8.0sq |
ST-66715 |
11.5 |
6.5 |
|
| FD系列-塑料修邊剪鉗頭 |
| 件號 |
裁剪能力 |
適用氣剪型號 |
A |
B |
C |
D |
| 軟塑料 |
硬塑料 |
mm |
mm |
mm |
mm |
| B-FD10 |
5 |
4 |
ST-66711 - ST-66716
ST-66712 |
11 |
11.8 |
7.5 |
42o |
| 7 |
4 |
| B-FD20 |
10 |
6.5 |
ST-66714 - ST-66717
DT-66715 |
14 |
17 |
11 |
30o |
| 13 |
6.5 |
| CL系列-夾緊剪鉗頭 |
| 件號 |
裁剪能力 |
適用氣剪型號 |
| B-CL10 |
11.0 |
ST-66711 - ST66712 - ST66716 |
| B-CL20 |
14.3 |
| B-CL30 |
15.9 |
ST-66714 - ST66715 - ST66717 |
| B-CL40 |
19.0 |
| AR系列-絕緣接線端,彎曲剪鉗頭 |
| 件號 |
裁剪能力 |
適用氣剪型號 |
A |
B |
| mm |
mm |
| B-AR20-1 |
1.25sq |
ST-66713 |
17 |
6.5 |
| B-AR30-1 |
1.25sq |
ST-66714 - ST-66715
ST-66717 |
17 |
6 |
| B-AR30-2 |
2.0sq |
| B-AR30-3 |
5.5sq |
| B-AR40-1 |
1.25-2.0sq |
22 |
5.8 |
| B-AR40-2 |
2.0-5.5sq |
| B-AR50 |
8.0sq |
ST-66715 |
17 |
6 |
|
