彈簧柱塞及擋銷(彈頂銷) |
|
與傳統的螺紋體彈簧柱塞不同, 杰根斯的Solid Drive®型彈簧柱塞是鋼制一體式結構: 內六角孔, 銷頂及柱塞體為一個整體。彈簧和尾部的固定螺絲不會從柱塞里掉出, 也不用特殊工具來拆卸。最大的好處是, 當調整Solid Drive®型彈簧柱塞時,整個彈簧柱塞整體轉動, 而不僅是單單一個螺絲。 --更多詳細介紹(4.2) |
|
|
|
| |
|
| |
|
| |
| 彈簧定位塞 |
|
|
 |

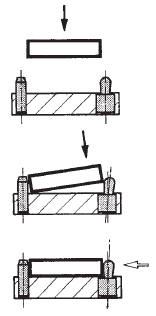

杰根斯彈簧定位塞為在緊湊空間固定小工件而設計. 特別適合于定位和卡夾平直或圓形部件, 以及用于側面夾緊.
- 材料:銷體, 鋁
銷, 鋼, 塑料, 或不銹鋼
- 表面處理: 鋼銷, 表面硬化, 鍍鋅
塑料銷, 尼龍
彈簧, 鋼
- 經濟
- 易于安裝操作
- 特別適合于定位平直或圓形部件
- 在工件上維持恒定壓力
- 縮小夾具空間
|
 |
注:
在流體或液體中使用, 需用彈簧定位塞密封件. 其他情況則不需密封. |
|
| |
 |

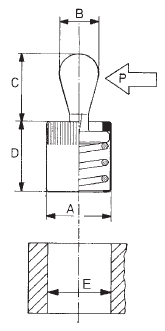

帶密封的彈簧定位塞 |
件
號 |
直徑
A |
B |
C |
D |
+.001
-.000
E |
彈力
P
(磅) |
X |
安裝
工具 |
鋼銷 |
塑料銷 |
36201 |
36221 |
.250 |
.118 |
.158 |
.276 |
.250 |
2.2 |
.035 |
36295 |
36202 |
36222 |
.250 |
.118 |
.158 |
.276 |
.250 |
4.5 |
.035 |
36295 |
36203 |
– |
.250 |
.118 |
.158 |
.276 |
.250 |
9.0 |
.035 |
36295 |
36204 |
36223 |
.438 |
.197 |
.236 |
.472 |
.438 |
4.5 |
.063 |
36296 |
36205 |
36224 |
.438 |
.197 |
.236 |
.472 |
.438 |
11.2 |
.063 |
36296 |
36206 |
– |
.438 |
.197 |
.236 |
.472 |
.438 |
21.5 |
.063 |
36296 |
36207 |
36225 |
.438 |
.236 |
.394 |
.472 |
.438 |
9.0 |
.071 |
36297 |
36208 |
36226 |
.438 |
.236 |
.394 |
.472 |
.438 |
17.0 |
.071 |
36297 |
36209 |
– |
.438 |
.236 |
.394 |
.472 |
.438 |
34.0 |
.071 |
36297 |
36210 |
36227 |
.500 |
.315 |
.512 |
.551 |
.500 |
11.2 |
.102 |
36298 |
36211 |
36228 |
.500 |
.315 |
.512 |
.551 |
.500 |
22.5 |
.102 |
36298 |
36212 |
– |
.500 |
.315 |
.512 |
.551 |
.500 |
45.0 |
.102 |
36298 |
36213 |
36229 |
.625 |
.394 |
.625 |
.709 |
.625 |
22.5 |
.126 |
36299 |
36214 |
36230 |
.625 |
.394 |
.625 |
.709 |
.625 |
45.0 |
.126 |
36299 |
36215 |
– |
.625 |
.394 |
.625 |
.709 |
.625 |
67.5 |
.126 |
36299 |
|
 |

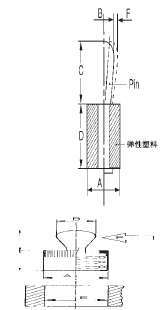

不帶密封的彈簧定位塞* |
件號 |
不銹鋼
件號 |
直徑
A |
B |
C |
D |
+.001
-.000
E |
彈力
P
(磅) |
X |
安裝
工具 |
鋼銷 |
塑料銷 |
36231 |
36251 |
36271 |
.250 |
.118 |
.146 |
.295 |
.250 |
2.2 |
.039 |
36295 |
36232 |
36252 |
36272 |
.250 |
.118 |
.146 |
.295 |
.250 |
4.4 |
.039 |
36295 |
36233 |
36253 |
36273 |
.438 |
.197 |
.287 |
.371 |
.438 |
6.7 |
.063 |
36296 |
36234 |
36254 |
36274 |
.438 |
.197 |
.287 |
.371 |
.438 |
13.5 |
.063 |
36296 |
36235 |
36255 |
36275 |
.438 |
.197 |
.287 |
.371 |
.438 |
20.0 |
.063 |
36296 |
36236 |
36256 |
36276 |
.438 |
.236 |
.406 |
.371 |
.438 |
4.4 |
.075 |
36297 |
36237 |
36257 |
36277 |
.438 |
.236 |
.406 |
.371 |
.438 |
6.7 |
.075 |
36297 |
36238 |
36258 |
36278 |
.438 |
.236 |
.406 |
.371 |
.438 |
13.5 |
.075 |
36297 |
36239 |
– |
36279 |
.438 |
.236 |
.406 |
.371 |
.438 |
20.0 |
.075 |
36297 |
36240 |
36259 |
36280 |
.500 |
.315 |
.520 |
.512 |
.500 |
11.1 |
.106 |
36298 |
36241 |
36260 |
36281 |
.500 |
.315 |
.520 |
.512 |
.500 |
22.2 |
.106 |
36298 |
36242 |
36261 |
36282 |
.625 |
.394 |
.654 |
.625 |
.625 |
17.5 |
.134 |
36299 |
36243 |
36262 |
36283 |
.625 |
.394 |
.654 |
.625 |
.625 |
35.0 |
.134 |
36299 |
*使用彈性塑料彈簧 |
|
| |
|
| |
|
